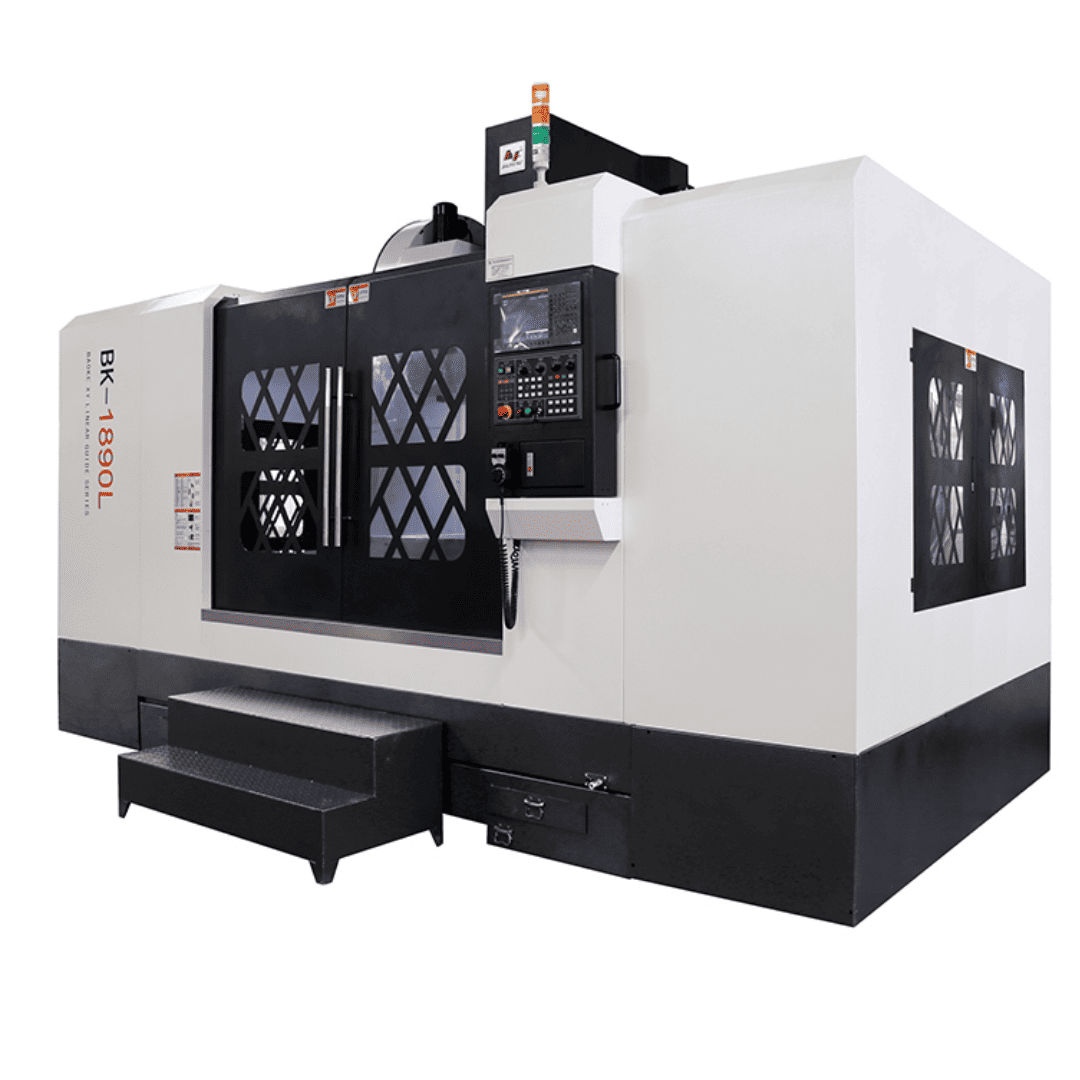

BK-1890L Linear Guide Machining Centre
High speed and high rigidity L series
It is mainly used for the automatic mass processing of parts and molds, such as complex cams, sample board, dies and arcs, and is widely applied in electronics, machinery, automotive, motorcycle, automation, medical equipment and other industries.
Description
| Parameter | Unit | BK-1890L Linear Guide Machining Centre |
|---|---|---|
| X/Y/Z axis travel | mm | 1800*800*700 |
| Table size | mm | 2000*900 |
| T slot | mm | 5-22*165 |
| Max load on table | kg | 1600 |
| Spindle center to column | mm | 950 |
| Spindle nose to table | mm | 160-850 |
| X/Y/Z axis motor | kW | 4.5/7.0/4.5 |
| X/Y/Z rapid feed | m/min | 18/18/15 |
| Controller | Mitsubishi M80A/M80B / Fanuc 0i-MF | |
| Spindle taper | BT50 | |
| Spindle speed | rpm | 6000 |
| Spindle motor | 15 kW / 18.5 kW | |
| Positioning accuracy | mm | ±0.005/300 |
| Repeated accuracy | mm | ±0.003/300 |
| Air pressure | kg/cm² | 6~7 bar |
| Dimension | mm | 5000*4100*3800 |
| Weight | kg | 14000 |
