MORSE TAPER ADAPTOR DRAWBAR DIN 6364

In Stock

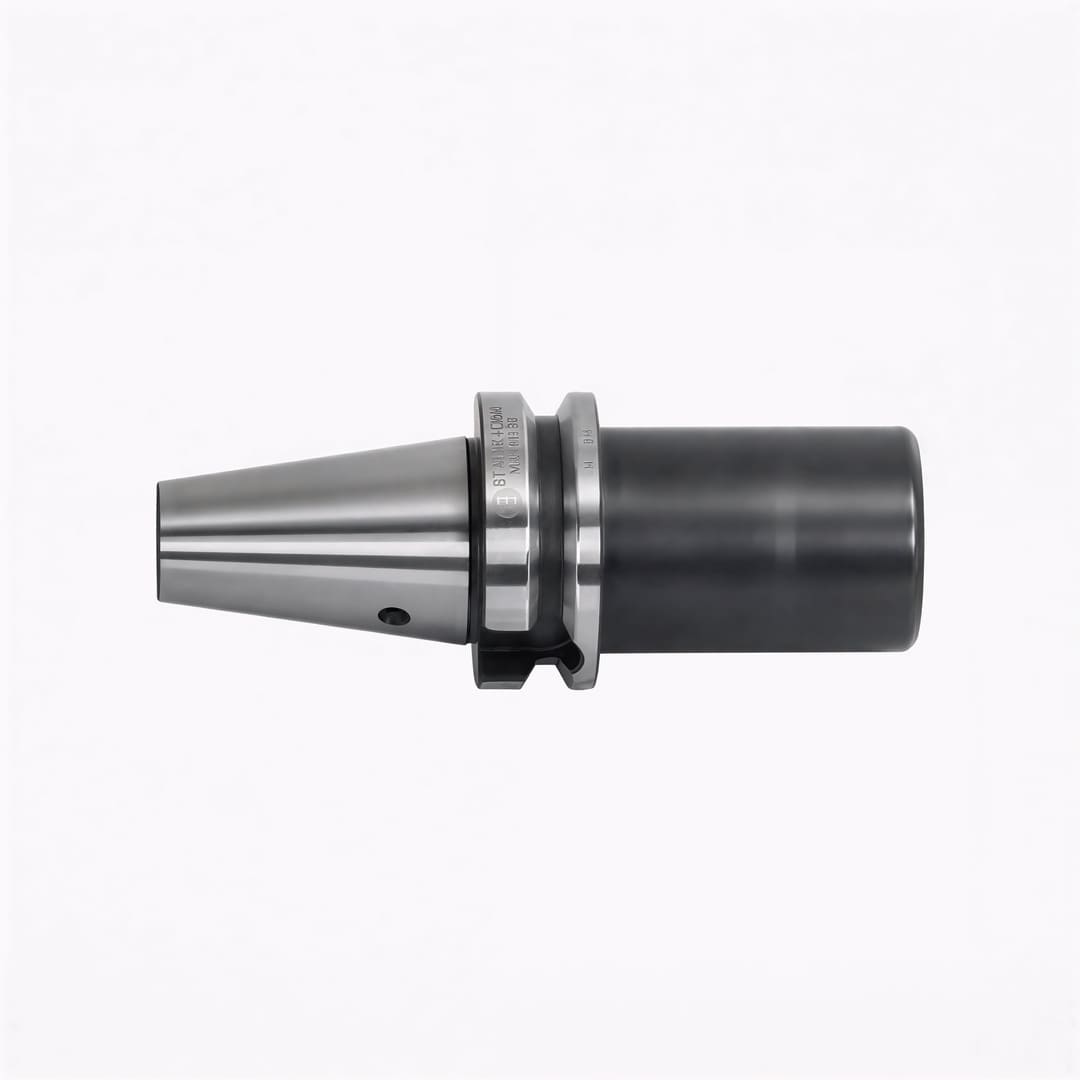

Pull-stud type Morse adapters (BT 40 / BT 50) are designed for secure and precise mounting of Morse taper tools on CNC machines.

The drawbar thread (G) ensures reliable tool retention, high rigidity, and stable torque transmission for drilling and milling operations.

Call for immediate assistance at +40 741 444 449

Description

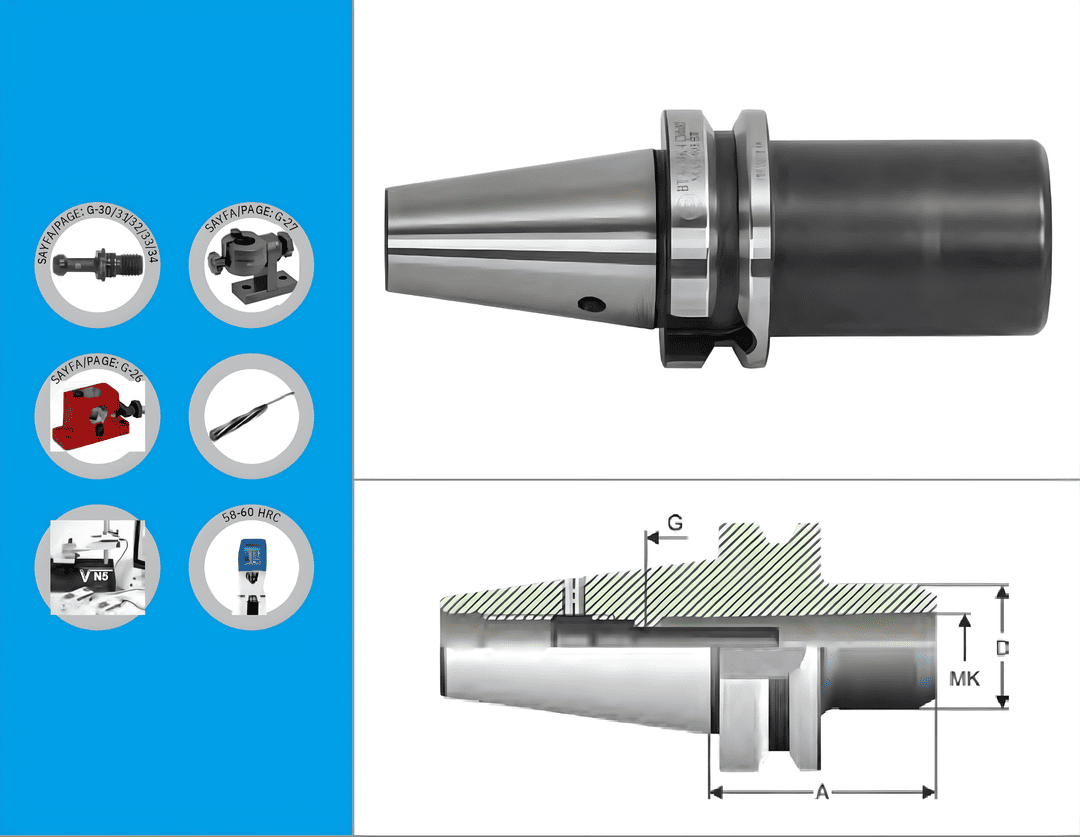

Order Number	Product Name	MK/morse	D (mm)	A (mm)	G
364001	BT 40 Pull Stud Morse Adapter	1	25	50	M6
364002	BT 40 Pull Stud Morse Adapter	2	32	55	M10
364003	BT 40 Pull Stud Morse Adapter	3	40	70	M12
364004	BT 40 Pull Stud Morse Adapter	4	48	95	M16
365001	BT 50 Pull Stud Morse Adapter	1	25	45	M6
365002	BT 50 Pull Stud Morse Adapter	2	32	60	M10
365003	BT 50 Pull Stud Morse Adapter	3	40	65	M12
365004	BT 50 Pull Stud Morse Adapter	4	48	85	M16
365005	BT 50 Pull Stud Morse Adapter	5	63	118	M20
