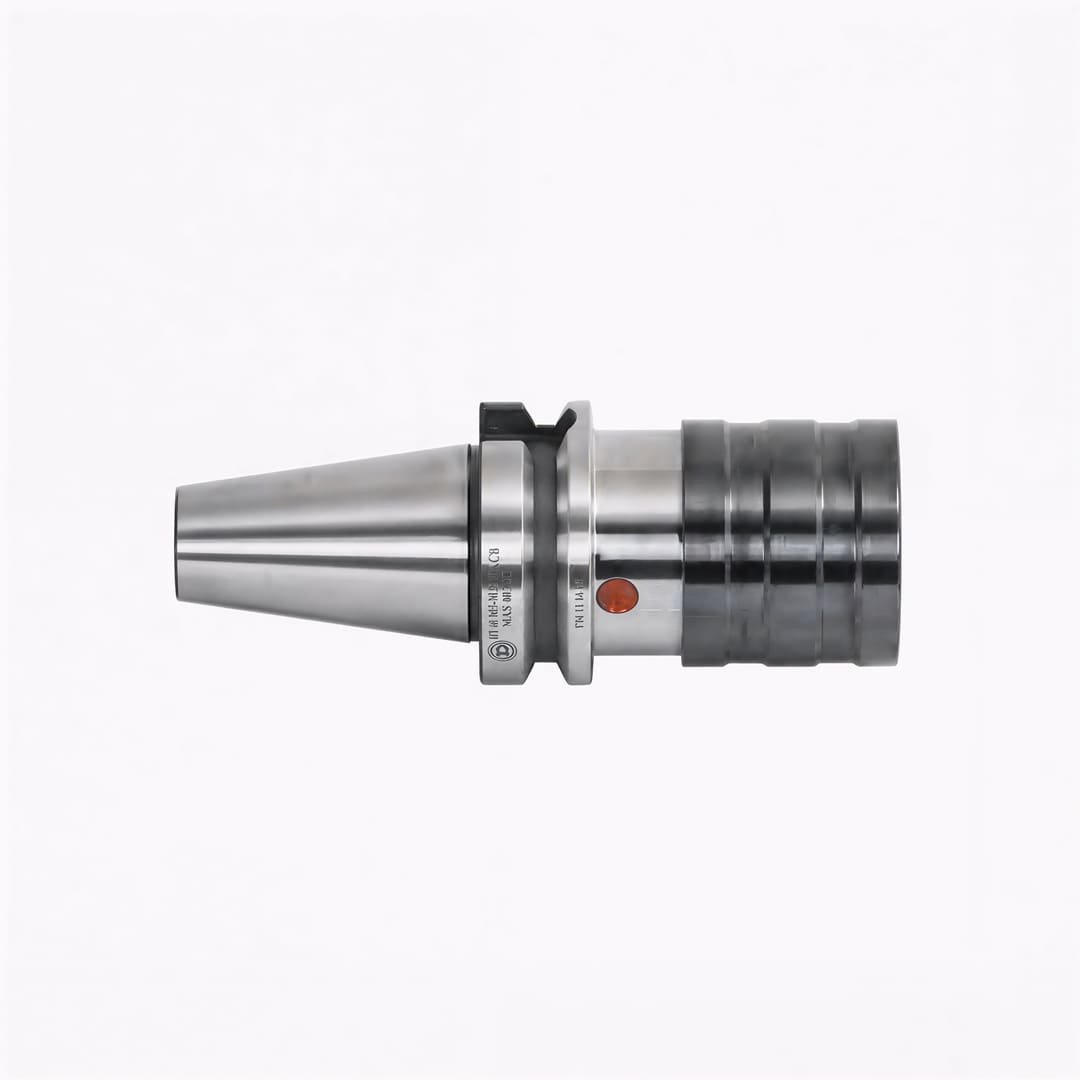

QUICK-CHANGE TAPPING CHUCKS WITH LENGTH COMPENSATION
Safety type tapping chuck designed for secure and precise tapping operations.
The built-in overload protection mechanism prevents tap breakage, ensuring reliable performance on CNC and conventional machines.
Description

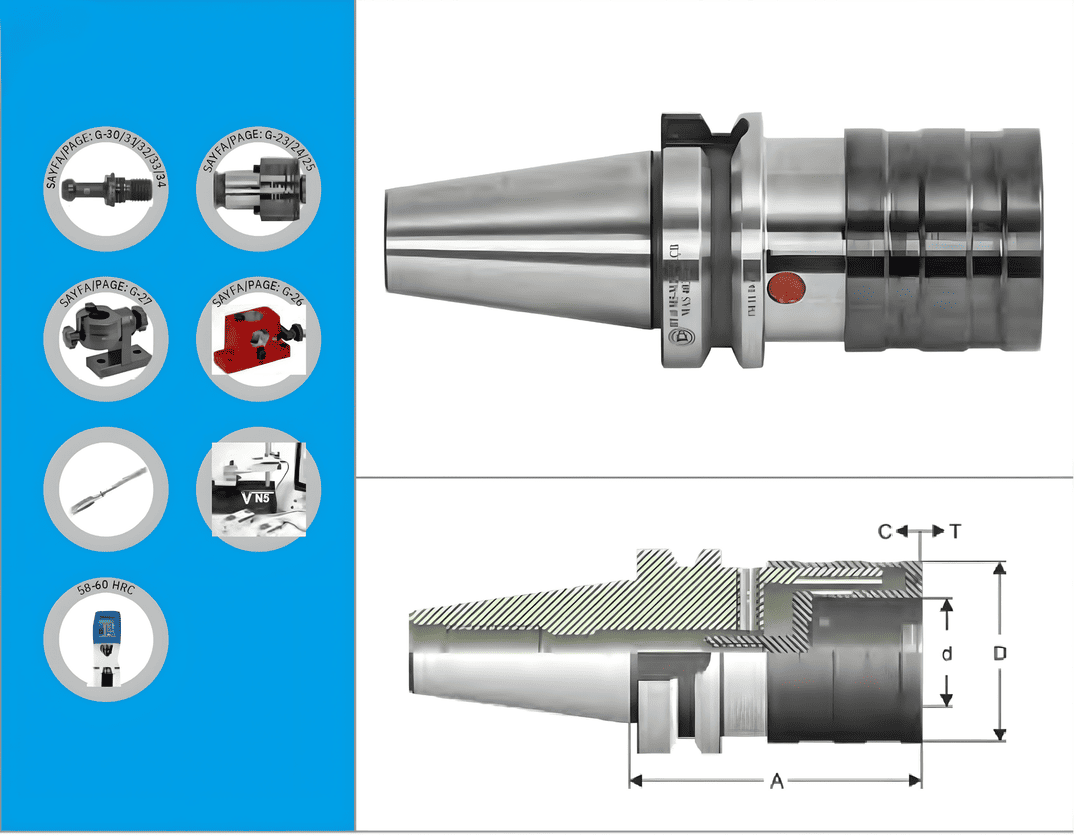

| Order Number | Product Name | d | A | D | C | T |
|---|---|---|---|---|---|---|
| 376214 | BT 30 M2–M14 Safety Type Tapping Chuck | 19 | 64 | 38 | 7 | 7 |
| 376524 | BT 30 M5–M24 Safety Type Tapping Chuck | 31 | 95 | 54 | 12 | 12 |
| 377214 | BT 40 M2–M14 Safety Type Tapping Chuck | 19 | 67 | 38 | 7 | 7 |
| 377524 | BT 40 M5–M24 Safety Type Tapping Chuck | 31 | 93 | 54 | 12 | 12 |
| 3771436 | BT 40 M14–M36 Safety Type Tapping Chuck | 48 | 136 | 78 | 17.5 | 17.5 |
| 378214 | BT 50 M2–M14 Safety Type Tapping Chuck | 19 | 82 | 38 | 7 | 7 |
| 378524 | BT 50 M5–M24 Safety Type Tapping Chuck | 31 | 102 | 54 | 12 | 12 |
| 3781436 | BT 50 M14–M36 Safety Type Tapping Chuck | 48 | 142 | 78 | 17.5 | 17.5 |
