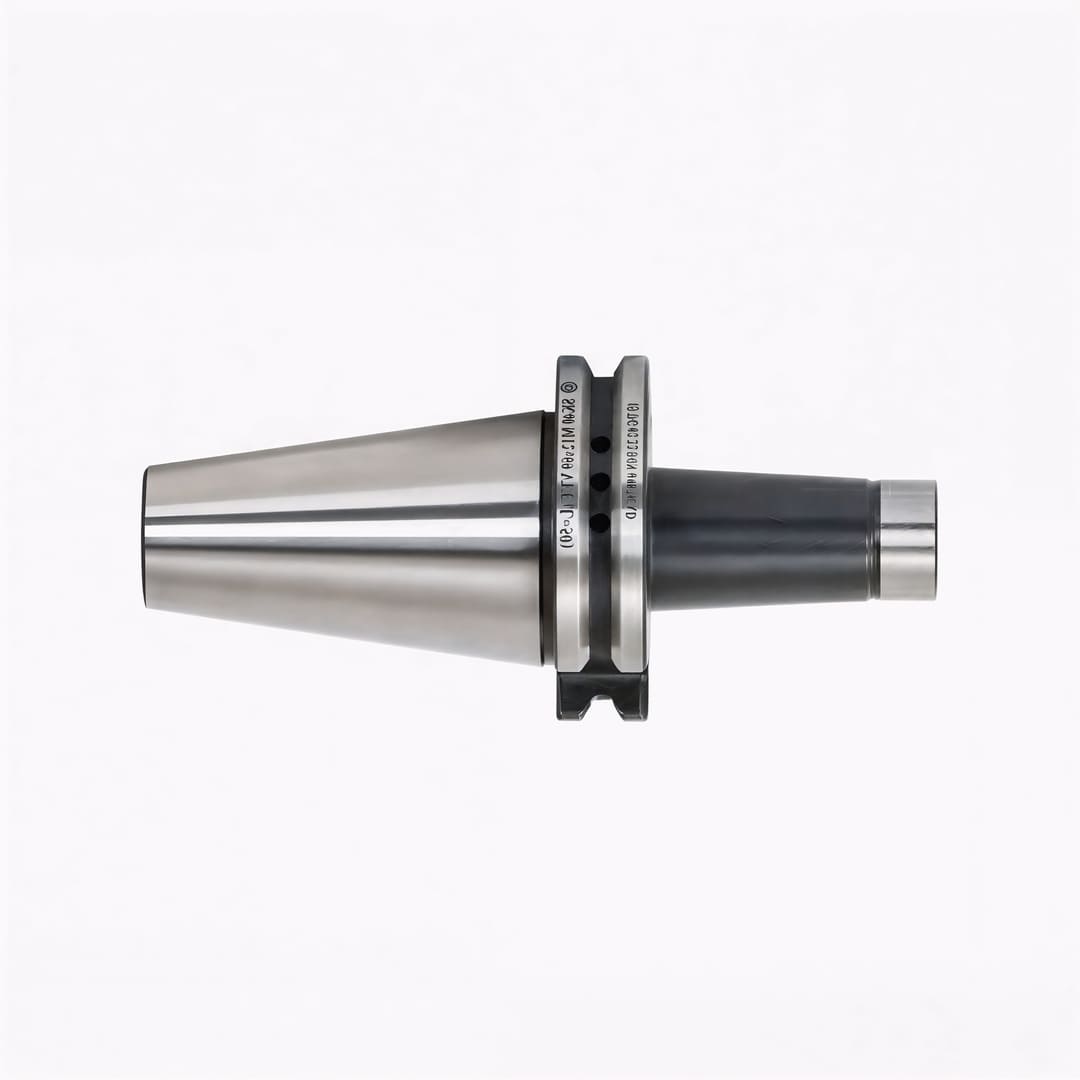

SET HOLDERS FOR SCREW MILLING CUTTERS
SK series screw-type tool holders for secure clamping of tools, available in M8–M16 sizes,
designed for high precision and stability on milling and drilling machines.
Description

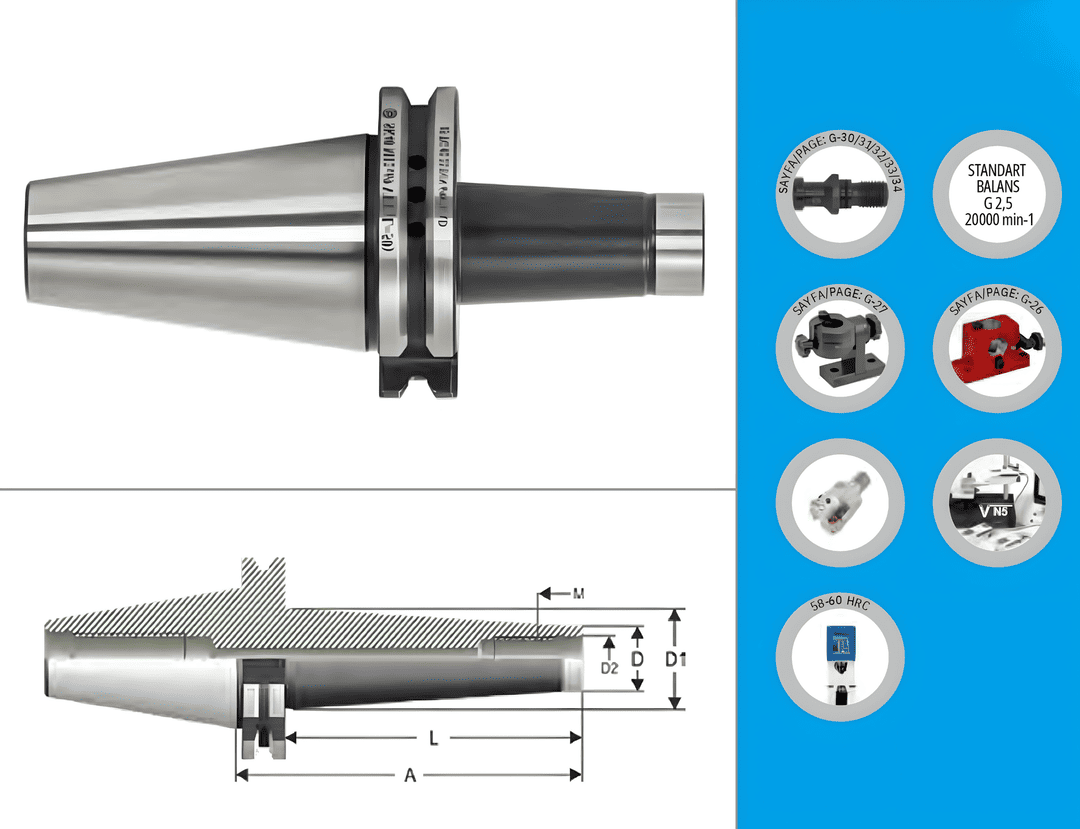

| Order Number | SK | M | D | D1 | A | L | D2 |
|---|---|---|---|---|---|---|---|
| 584008 | SK 40 | M8 | 13 | 23 | 69 | 50 | 8,5 |
| 584008.1 | SK 40 | M8 | 13 | 25 | 119 | 100 | 8,5 |
| 584008.2 | SK 40 | M8 | 13 | 30 | 169 | 150 | 8,5 |
| 584010 | SK 40 | M10 | 18 | 23 | 69 | 50 | 10,5 |
| 584010.1 | SK 40 | M10 | 18 | 32 | 119 | 100 | 10,5 |
| 584010.2 | SK 40 | M10 | 18 | 36 | 169 | 150 | 10,5 |
| 584012 | SK 40 | M12 | 21 | 24 | 69 | 50 | 12,5 |
| 584012.1 | SK 40 | M12 | 21 | 33 | 119 | 100 | 12,5 |
| 584012.2 | SK 40 | M12 | 21 | 40 | 169 | 150 | 12,5 |
| 584016 | SK 40 | M16 | 29 | 34 | 94 | 75 | 17 |
| 584016.0 | SK 40 | M16 | 29 | 29 | 44 | 25 | 17 |
| 584016.1 | SK 40 | M16 | 29 | 40 | 144 | 125 | 17 |
