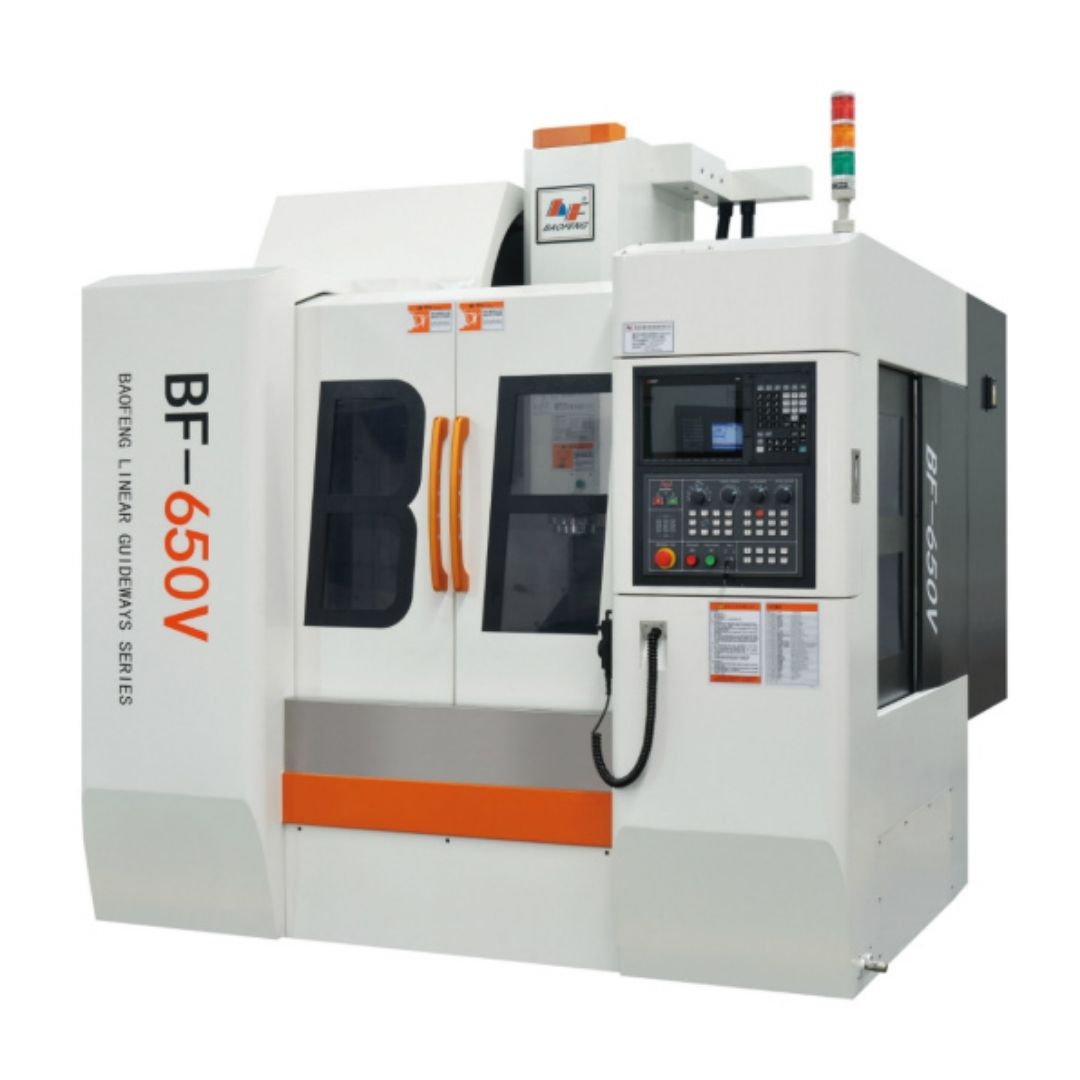

BF-650V Vertical Machining Center
High precision and high efficiency series.
High speed high precision VMC for molds processing
Baofeng utilizes its mature vertical machining centers techniques to present you with the BF-650V, which is special design for the industries in 3C component machining and small die-&-mold machining, it can continuously complete drilling, milling, tapping, boring, reaming and other machining processes by once clamping, and can complete coordinate boring and fine machining of complicated parts and molds accurately and efficiently. BF-650V is broadly used in high precision parts and molds manufacturers, can fully present high precision and high efficiency machining ability at a very reasonable cost.
Description
| Parameter | Unit | BF-650V |
|---|---|---|
| X/Y/Z axis travel | mm | 650*500*500 |
| Table size | mm | 720*450 |
| T slot | mm | 5-18*80 |
| Max load on table | kg | 400 |
| Spindle center to column | mm | 520 |
| Spindle nose to table | mm | 130-630 |
| X/Y/Z axis motor | KW | 3.0/3.0/3.0 |
| X/Y/Z rapid feed | m/min | 30/30/30 |
| Controller | Mitsubishi M80A/M80B / Fanuc 0i-MF / Siemens 828D | |
| Spindle taper | BBT40-Φ120 | |
| Spindle speed | rpm | 12000 |
| Spindle motor | HP | 11 |
| Positioning accuracy | mm | ±0.003/300 |
| Repeated accuracy | mm | ±0.002/300 |
| Air pressure | kg/cm² | 6~7 bar |
| Dimension | mm | 2200*2780*2730 |
| Weight | kg | 4500 |
- High grade gray casting machine body designed using Finite Element Method (FEA) for lightweight and high rigidity.
- All rail mounting surfaces are milled and ground to ensure excellent precision and over 90% contact rate.
- All joint surfaces are manually scraped to ensure geometric accuracy and rigidity.
- Special large-span base and column structure improves inertia resistance and dynamic responsiveness.
- BBT40 direct drive spindle with V1 vibration standard provides lower vibration and better surface finish compared to V4.
