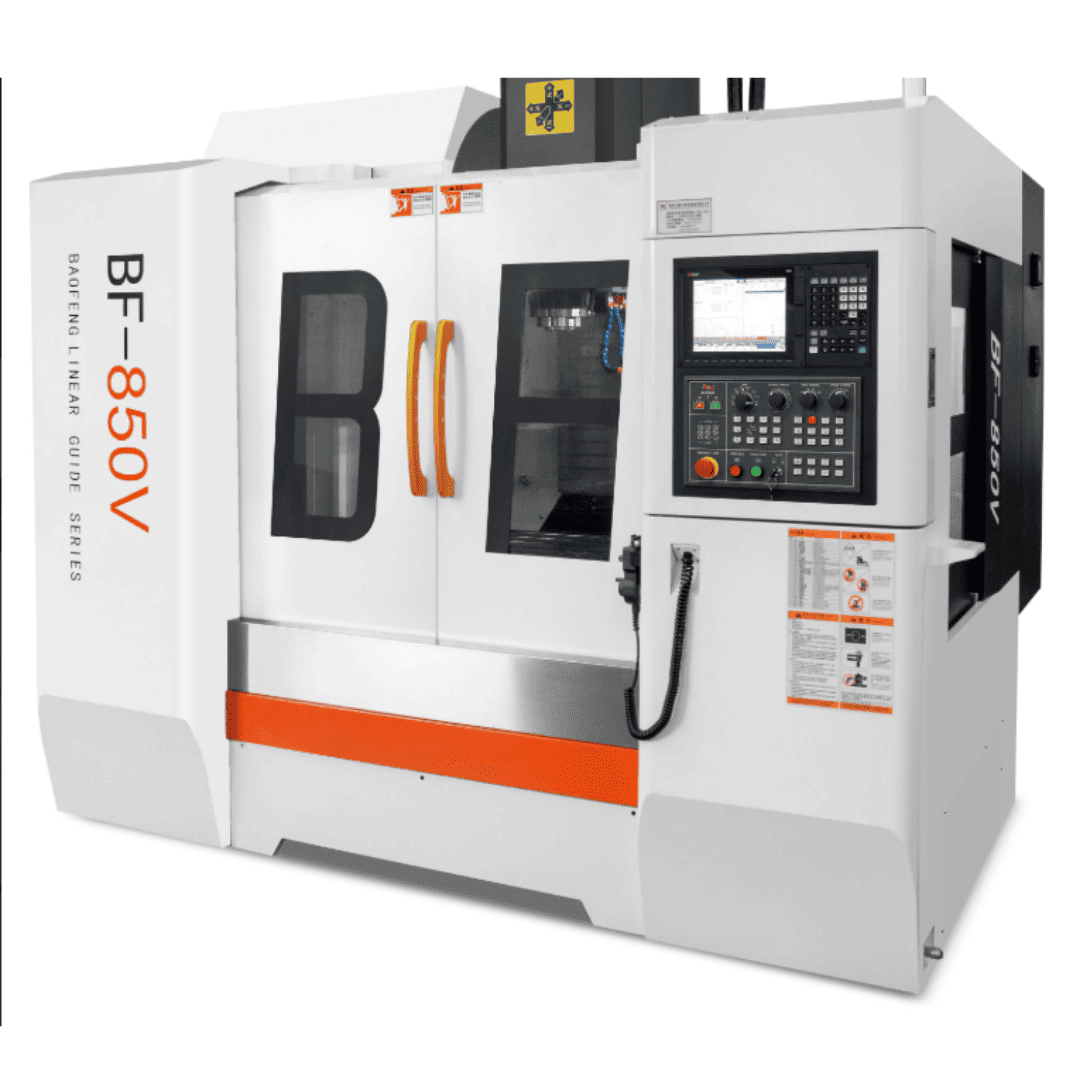

BF-850V Vertical Machine Center
High precision and high efficiency series
High speed high precision VMC for molds processing
Based on BAOFENG’s innovative technology, BF-850V is specialized in high precision molds manufacturing industry. Designed with super rigidity structure and X/Y/Z axis high precision linear guideway and ball screw with locking pretension design, BF-850V could provide you with fast, strong, stable machining performance, which made it applicable to the high precision component machining and die-&-mold machining. It is broadly used in the industry of automobiles, machinery, instrumentation, light industrial textiles, electronic instruments, can fully present high precision and high-efficiency machining ability at a very reasonable cost.
Description
| Parameter | Unit | BF-850V |
|---|---|---|
| X/Y/Z axis travel | mm | 800*500*500 |
| Table size | mm | 900*500 |
| T slot | mm | 5-18*100 |
| Max load on table | kg | 800 |
| Spindle center to column | mm | 520 |
| Spindle nose to table | mm | 140-640 |
| X/Y/Z axis motor | KW | 3.0/3.0/3.0 |
| X/Y/Z rapid feed | m/min | 30/30/30 |
| Controller | Mitsubishi M80A/M80B / Fanuc 0i-MF / Siemens 828D | |
| Spindle taper | BBT40 | |
| Spindle speed | rpm | 12000 |
| Spindle motor | KW | 11 |
| Positioning accuracy | mm | ±0.003/300 |
| Repeated positioning | mm | ±0.002/300 |
| Air pressure | kg/cm² | 6~7 bar |
| Dimension | mm | 2600*2750*2900 |
| Weight | kg | 5500 |
- High grade gray casting machine body designed using Finite Element Method (FEA) for lightweight and high rigidity.
- All rail mounting surfaces are milled and ground to ensure excellent precision and over 90% contact rate.
- All joint surfaces are manually scraped to ensure geometric accuracy and rigidity.
- Special large-span base and column structure improves inertia resistance and dynamic responsiveness.
- BBT40 direct drive spindle with V1 vibration standard provides lower vibration and better surface finish compared to V4.
