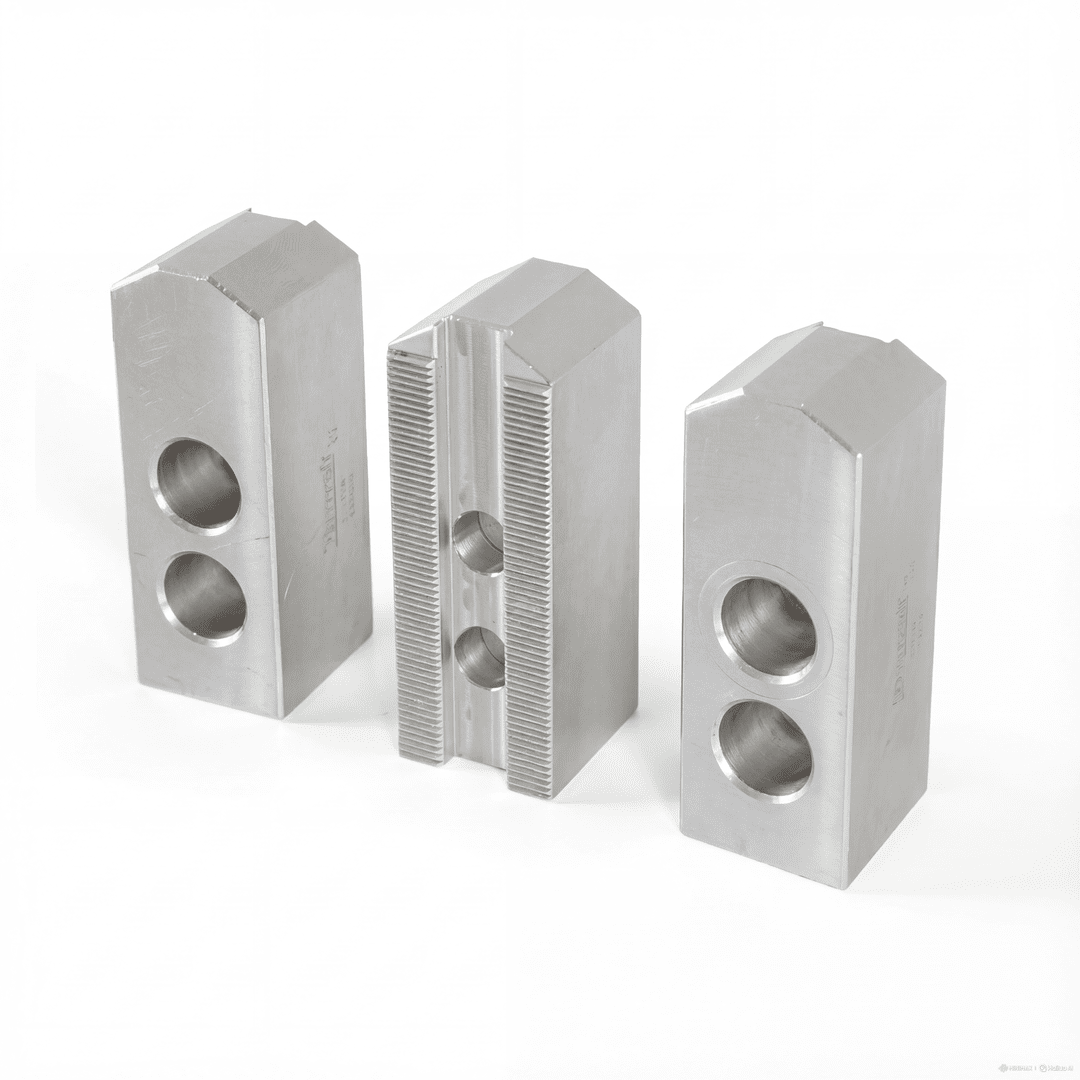

Aluminum Soft Jaws
High-precision, durable jaws designed for consistent grip and long-lasting performance.
Engineered for accuracy and reliability in demanding machining operations.
Description

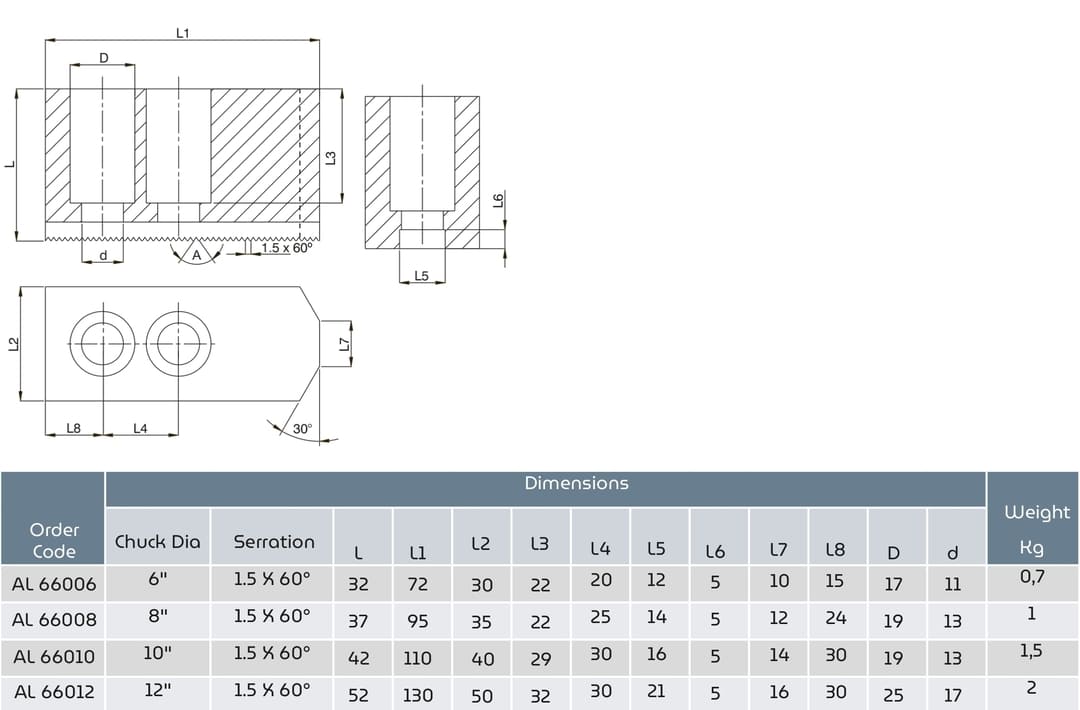

| Order Code | Chuck Dia | Serration | L2 | L | L3 | L1 | L4 | L5 | L6 | L7 | L8 | D | d | Weight (Kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| AL 66006 | 6″ | 1.5 x 60° | 30 | 32 | 22 | 72 | 20 | 12 | 5 | 10 | 15 | 17 | 11 | 0.7 |
| AL 66008 | 8″ | 1.5 x 60° | 35 | 37 | 22 | 95 | 25 | 14 | 5 | 12 | 24 | 19 | 13 | 1 |
| AL 66010 | 10″ | 1.5 x 60° | 40 | 42 | 29 | 110 | 30 | 16 | 5 | 14 | 30 | 19 | 13 | 1.5 |
| AL 66012 | 12″ | 1.5 x 60° | 50 | 52 | 32 | 130 | 30 | 21 | 5 | 16 | 30 | 25 | 17 | 2 |
