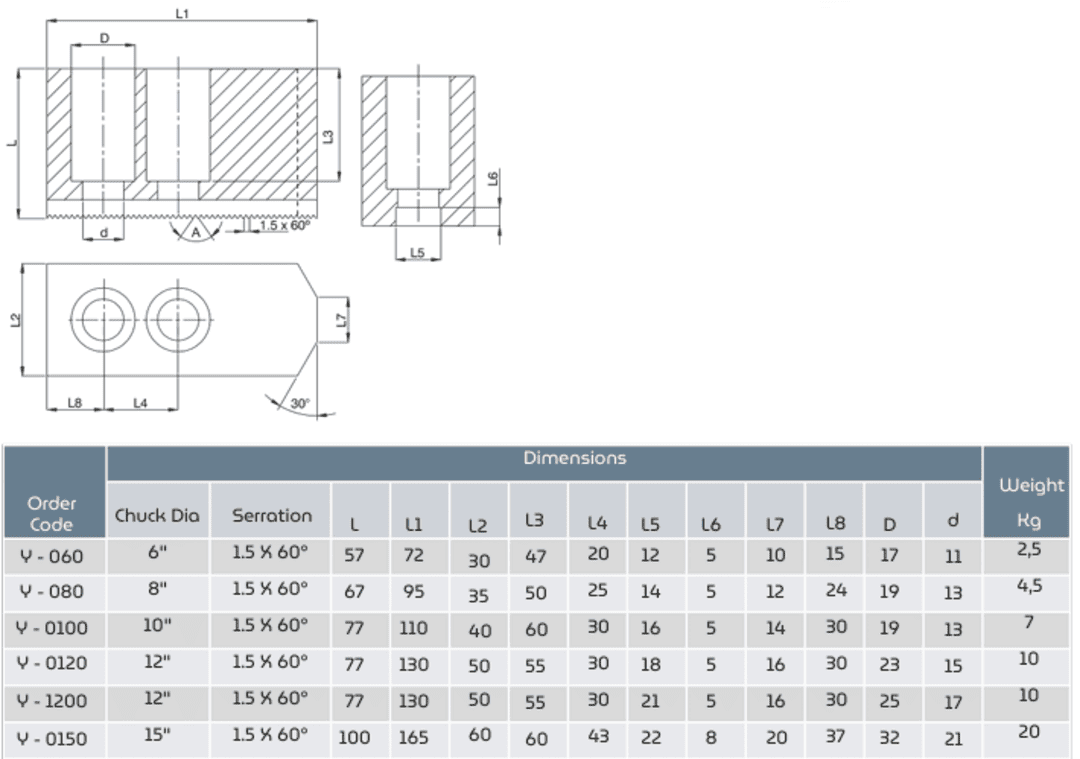

High Soft Jaws Type 01
High-quality chuck jaw with 1.5 × 60° serration for precise and secure clamping.
Designed for durability and consistent performance in demanding machining applications.
Description
| Order Code | Chuck Dia | Serration | Dimensions | Weight (Kg) | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| L | L1 | L2 | L3 | L4 | L5 | L6 | L7 | L8 | D | d | ||||
| Ψ-060 | 6″ | 1.5 X 60° | 57 | 72 | 30 | 47 | 20 | 12 | 5 | 15 | 17 | 11 | 2,5 | |
| Ψ-080 | 8″ | 1.5 X 60° | 67 | 95 | 35 | 50 | 25 | 14 | 5 | 24 | 19 | 13 | 4,5 | |
| Ψ-0100 | 10″ | 1.5 X 60° | 77 | 110 | 40 | 60 | 30 | 16 | 5 | 14 | 30 | 19 | 13 | 7 |
| Ψ-0120 | 12″ | 1.5 X 60° | 77 | 130 | 50 | 55 | 30 | 18 | 5 | 16 | 30 | 23 | 15 | 10 |
| Ψ-1200 | 12″ | 1.5 X 60° | 77 | 130 | 50 | 55 | 30 | 21 | 5 | 16 | 30 | 25 | 17 | 10 |
| Ψ-0150 | 15″ | 1.5 X 60° | 100 | 165 | 60 | 60 | 43 | 22 | 8 | 20 | 37 | 32 | 21 | 20 |
